Nutanix NX-8035-G8
Purpose-Built Hyperconverged Infrastructure (HCI) Appliances for Hybrid Clouds

Nutanix NX-8035-G8

Contact us for Pricing!

Get a Quote

Nutanix NX nodes are purpose-built SuperMicro appliances with configuration options for all hyperconverged infrastructure (HCI) use cases. They offer a streamlined IT operations (ITOps) experience for all your workloads from day-0 through day-n.

Overview

Capabilities & Benefits

Specifications

Use Cases

Overview:

The Nutanix Virtual Computing Platform integrates high-performance server resources with enterprise-class storage in a cost-effective 2U appliance. It eliminates the need for network-based storage architecture, such as a storage area network (SAN) or network-attached storage (NAS). The scalability and performance that the world’s largest, most efficient datacenters enjoy are now available to all enterprises and government agencies.

Benefits of NX Infrastructure

Simplicity

1-click IT operations from deployments in hours to non-disruptive software and firmware upgrades.

Flexibility

Mix and match node models and configurations as needed. Deploy only when required.

Integration

Single vendor solution with world-class 90+ Net Promoter Score (NPS) support.

Capabilities & Benefits:

Nutanix NX appliances provide a simple HCI solution for IT operations, from initial deployment through to support and maintenance with a single point of contact, and with hardware configurations designed for all application use cases.

Balanced Compute and Storage

Designed to provide a balance between compute and storage capabilities, these platforms offer flexible configurations that include GPU options.

Platforms cover a variety of use cases including ROBO and datacenter deployments such as virtual desktop infrastructure (VDI), private and hybrid cloud.

Sizer screenshot showing EUC plan.

Specifications:

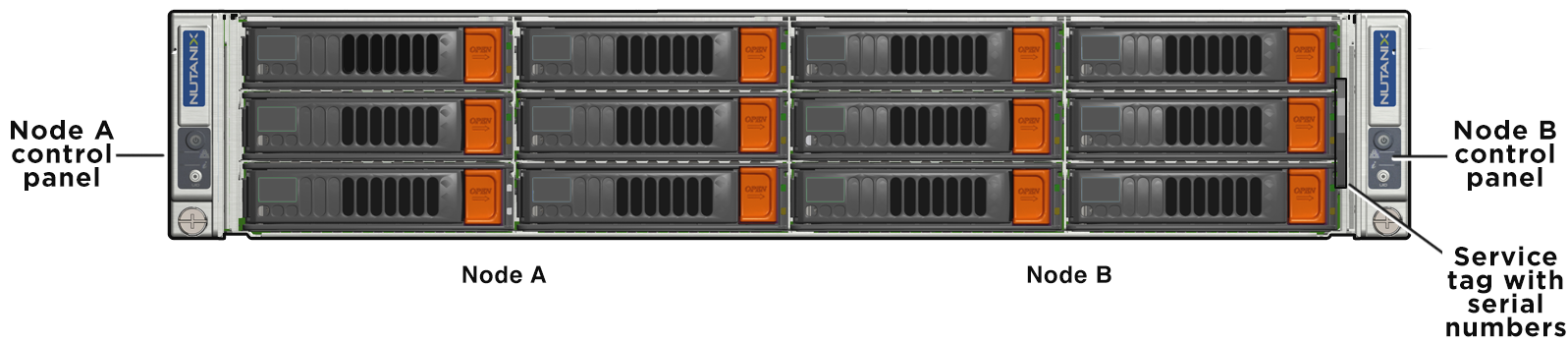

Front View

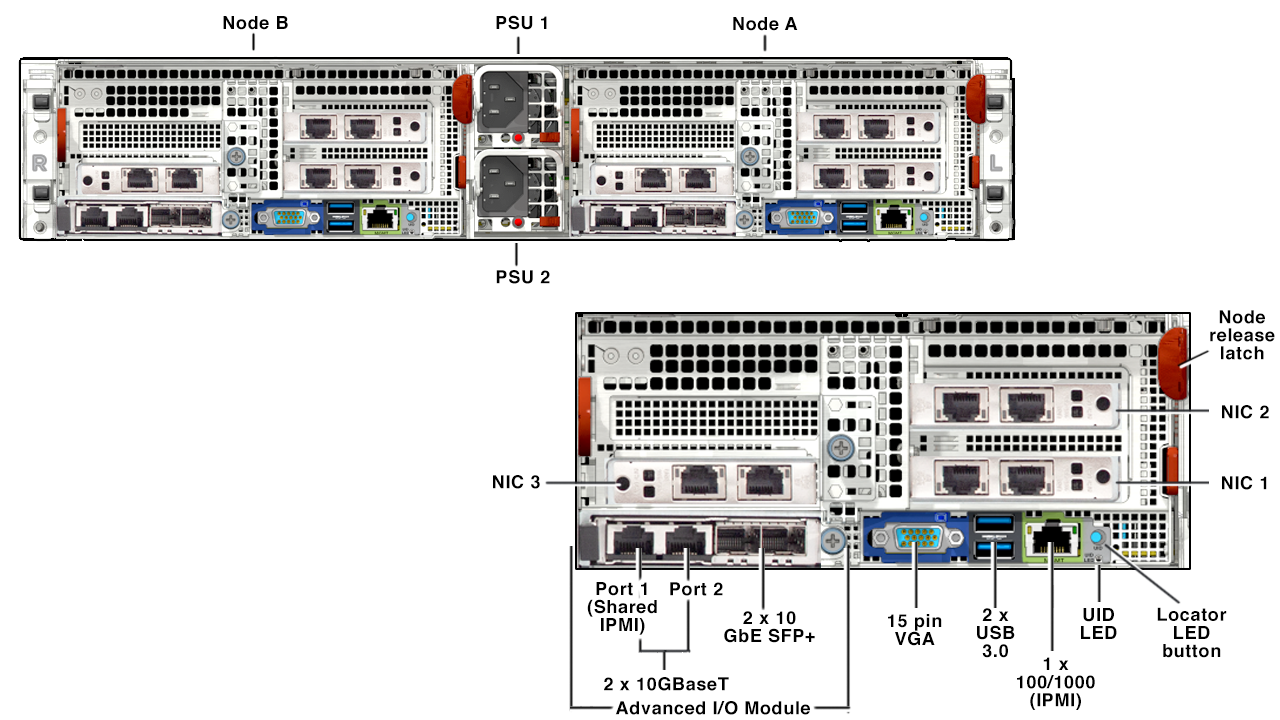

Rear View

NX-8035-G8 Specifications
Deployment Model	Factory Installed Software
Use Case	Database and Business Critical Apps, Analytics and Big Data
Server Compute**	Dual Intel Ice Lake: Intel Xeon Silver 4309Y [8 cores / 2.80 GHz] Intel Xeon Silver 4310 [12 cores / 2.10 GHz] Intel Xeon Silver 4310T [10 cores / 2.30 GHz] Intel Xeon Silver 4314 [16 cores / 2.40 GHz] Intel Xeon Silver 4316 [20 cores / 2.30 GHz] Intel Xeon Gold 5315Y [8 cores / 3.20 GHz] Intel Xeon Gold 5317 [12 cores / 3.00 GHz] Intel Xeon Gold 5318Y [24 cores / 2.10 GHz] Intel Xeon Gold 5320 [26 cores / 2.20 GHz] Intel Xeon Gold 5320T [20 cores / 2.30 GHz] Intel Xeon Gold 6326 [16 cores / 2.90 GHz] Intel Xeon Gold 6330 [28 cores / 2.00 GHz] Intel Xeon Gold 6334 [8 cores / 3.60 GHz] Intel Xeon Gold 6336Y [24 cores / 2.40 GHz] Intel Xeon Gold 6338 [32 cores / 2.00 GHz] Intel Xeon Gold 6342 [24 cores / 2.80 GHz] Intel Xeon Gold 6346 [16 cores / 3.10 GHz] Intel Xeon Gold 6348 [28 cores / 2.60 GHz] Intel Xeon Gold 6354 [18 cores / 3.00 GHz]
Boot	Dual M.2 RAID1: [2] x 512GB M.2 Boot Device
Storage Capacity	All SSD SED - [2, 4, 6] x SSD: [1.92 TB, 3.84 TB] NVMe+SSD - [2] x NVMe: [1.92 TB, 3.84 TB, 7.68 TB], [2, 4] x SSD: [1.92 TB, 3.84 TB, 7.68 TB] All SSD - [2, 4, 6] x SSD: [1.92 TB, 3.84 TB, 7.68 TB] SSD+HDD - [2] x SSD: [1.92 TB, 3.84 TB, 7.68 TB], [4] x HDD: [6.0 TB, 8.0 TB, 12.0 TB, 18.0 TB] SSD+HDD SED - [2] x SSD: [1.92 TB, 3.84 TB], [4] x HDD: [6.0 TB, 8.0 TB, 12.0 TB]
Memory	128 GB, 256 GB, 384 GB, 512 GB, 768 GB, 1024 GB, 1536 GB, 2048 GB
Network Connections	Server-board [1] 1GbE Dedicated IPMI [2] 10GbE SFP+ [2] 10GBaseT (IPMI Failover) Network Card [0, 1, 2, 3] x 10GBaseT 2P NIC [0, 1, 2, 3] x 10GBaseT 4P NIC [0, 1, 2, 3] x 10GbE 4P NIC [0, 1, 2, 3] x 25GbE 2P NIC
GPU	N/A
Certifications	Energy Star, CSAus, FCC, CSA, UL, cUL, ICES, CE, UKCA, KCC, RCM, VCCI-A, BSMI, EAC, SABS, S-MARK, UKRSEPRO, BIS, SII, RoHS, Reach, WEEE
Dimensions (Per Block)	Height: 3.47" (88.10 mm) Width: 17.68" (449 mm) Depth: 30.11" (764.75 mm) Rack Units: 2U2N
Weight (Per Block)	Standalone: 74.08 lbs.(33.6 kg) Package: 108.03 lbs.(49.0 kg)
System Cooling	4x 80 mm heavy duty fans with PWM fan speed controls
Operating Environment (Per Block)	Op Temp Range: 50° to 95°F(10° to 35°C) Non-Op Temp Range: -49° to 158°F(-45° to 70°C) Op Humidity Range (non-condensing): 68° to 194°F(20° to 90°C) Non-Op Humidity Range: 41° to 203°F(5° to 95°C)
Power Consumption	Typical: 1500W Maximum: 2000W
Power Supply (Per Block)	1.2kW Output @100-127V, 11.0-14.0A, 50-60Hz 2.1kW Output @180-220V, 11.0-14.0A, 50-60Hz 2.2kW Output @220-240V, 11.0-12.0A, 50-60Hz Energy Star 80+ Titanium
Thermal Dissipation	Typical: 5118.0 BTU/hr Maximum: 6824.0 BTU/hr
Operating Requirements (Per Block)	Input Voltage: 100-240V AC auto-range, Input Frequency: 50-60Hz

** Number of cores per CPU socket.

Use Cases:

Nutanix NX series platforms are designed for use in all hyperconverged infrastructure, hybrid and private cloud solutions.

Node models and configurations with different storage types can be mixed in a cluster, enabling organizations to reduce infrastructure silos.
