Purpose-Built Hyperconverged Infrastructure (HCI) Appliances for Hybrid Clouds
Contact us for Pricing!
Get a Quote

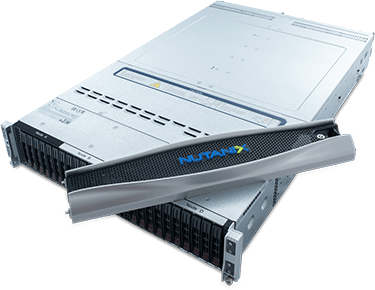

Nutanix NX nodes are purpose-built SuperMicro appliances with configuration options for all hyperconverged infrastructure (HCI) use cases. They offer a streamlined IT operations (ITOps) experience for all your workloads from day-0 through day-n.
The Nutanix Virtual Computing Platform integrates high-performance server resources with enterprise-class storage in a cost-effective 2U appliance. It eliminates the need for network-based storage architecture, such as a storage area network (SAN) or network-attached storage (NAS). The scalability and performance that the world’s largest, most efficient datacenters enjoy are now available to all enterprises and government agencies.
Benefits of NX Infrastructure
1-click IT operations from deployments in hours to non-disruptive software and firmware upgrades.
Mix and match node models and configurations as needed. Deploy only when required.
Single vendor solution with world-class 90+ Net Promoter Score (NPS) support.
Capabilities & Benefits:
Nutanix NX appliances provide a simple HCI solution for IT operations, from initial deployment through to support and maintenance with a single point of contact, and with hardware configurations designed for all application use cases.

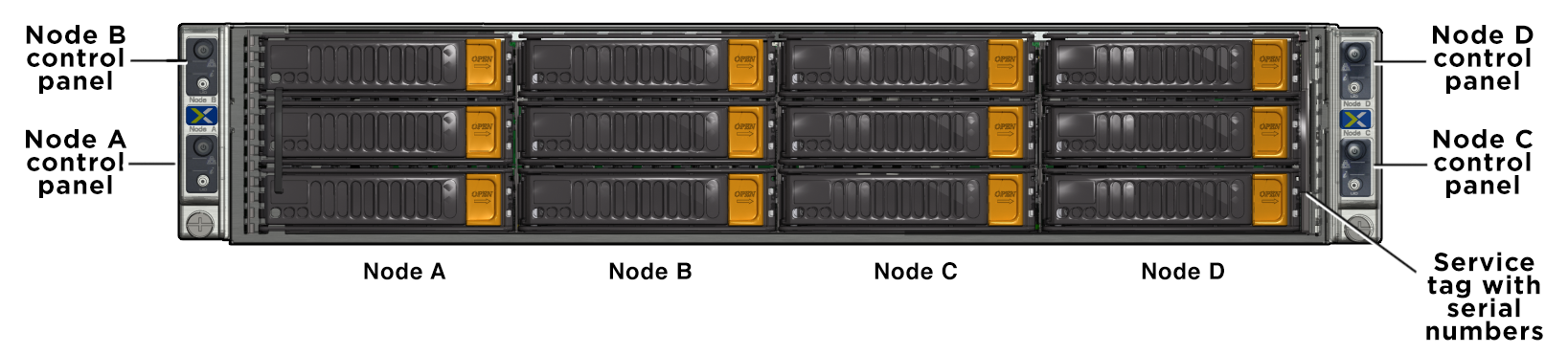

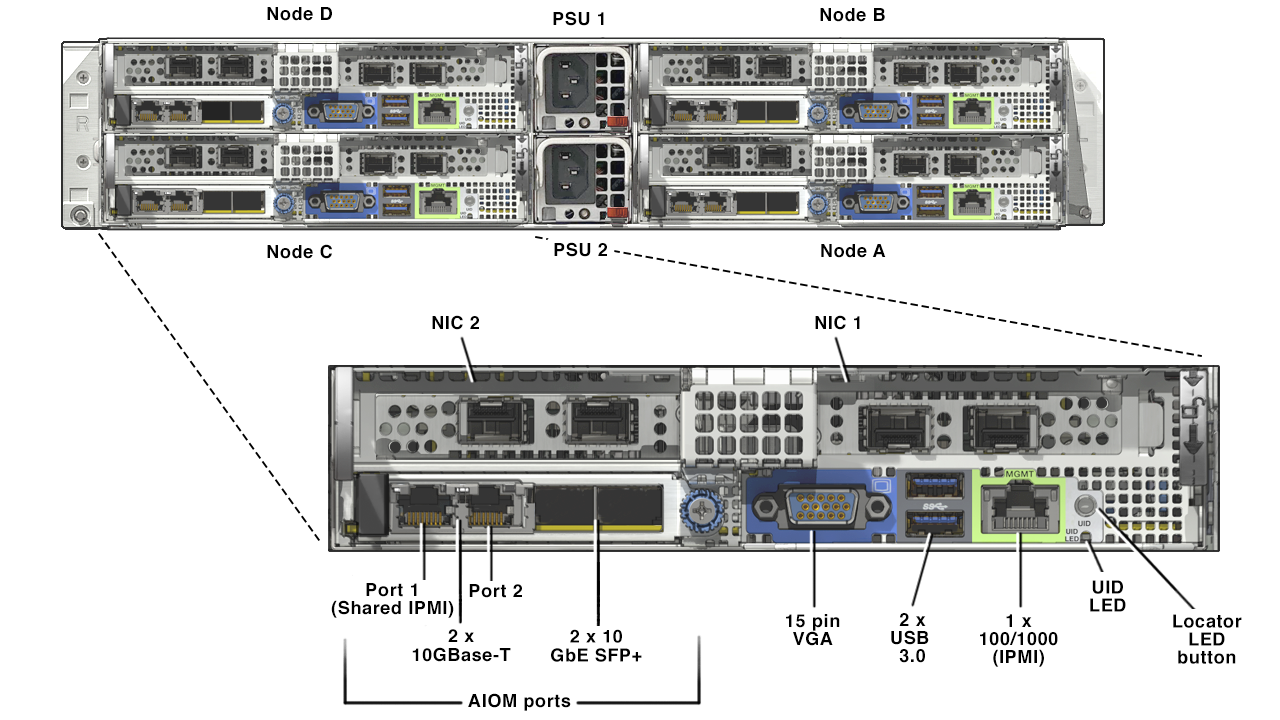

High density 2U 4-node form-factor platforms are designed for entry-level to mid-range compute and storage workload requirements.
The multi-node platforms provide density and flexibility important to Remote Office, Branch Office (ROBO) and test and development use cases.
The NX-1120S has been purposely designed for when IT equipment space is limited. It is a 1U, ½ rack-depth appliance that fits standard telco racks, and has low power and cooling requirements to meet the most stringent remote office and edge network demands.
|Deployment Model||Factory Installed Software|
|Use Case||Analytics and Big Data, Files and Objects, Private Cloud, End-User Computing/Virtual Desktop Infrastructure, Remote Office/Branch Offic|
|Server Compute**||Dual Intel Cascade Lake:
|Boot||Dual M.2 RAID1:  x 240GB M.2 Boot Device,|
|Storage Capacity||All SSD SED -
[2, 4, 6] x SSD: [1.92 TB, 3.84 TB]
NVMe+SSD -  x NVMe: [1.92 TB, 3.84 TB],  x SSD: [1.92 TB, 3.84 TB, 7.68 TB]
All SSD - [2, 4, 6] x SSD: [1.92 TB, 3.84 TB, 7.68 TB]
SSD+HDD -  x SSD: [1.92 TB, 3.84 TB, 7.68 TB],  x HDD: [2.0 TB]
SSD+HDD SED -  x SSD: [1.92 TB, 3.84 TB],  x HDD: [2.0 TB]
|Memory||128 GB, 256 GB, 384 GB, 512 GB, 768 GB, 1024 GB, 1536 GB|
|Certifications||Energy Star, CSAus, FCC, CSA, UL, cUL, ICES, CE, UKCA, KCC, RCM, VCCI-A, BSMI, EAC, SABS, S-MARK, UKRSEPRO, BIS, SII, RoHS, Reach, WEEE|
|Height: 3.46" (88 mm)
Width: 17.68" (449 mm)
Depth: 28.70" (728.93 mm)
Rack Units: 2U4N
|Standalone: 70.99 lbs.(32.2 kg)
Package: 104.94 lbs.(47.6 kg)
Node: 7.05 lbs.(3.2 kg)
|System Cooling||4x 80 mm heavy duty fans with PWM fan speed controls|
|Op Temp Range: 50° to 95°F(10° to 35°C)
Non-Op Temp Range: -49° to 158°F(-45° to 70°C)
Op Humidity Range (non-condensing): 68° to 194°F(20° to 90°C)
Non-Op Humidity Range: 41° to 203°F(5° to 95°C)
|Power Consumption||Typical: 1800W
|1.2kW Output @100-127V, 11.0-14.0A, 50-60Hz
2.1kW Output @180-220V, 11.0-14.0A, 50-60Hz
2.2kW Output @220-240V, 9.8-10.0A, 50-60Hz
Energy Star 80+ Titanium
|Thermal Dissipation||Typical: 5800.0 BTU/hr
Maximum: 7098.0 BTU/hr
|Input Voltage: 100-240V AC auto-range, Input Frequency: 50-60Hz|
** Number of cores per CPU socket.
Nutanix NX series platforms are designed for use in all hyperconverged infrastructure, hybrid and private cloud solutions.
Node models and configurations with different storage types can be mixed in a cluster, enabling organizations to reduce infrastructure silos.
