Nutanix NX nodes are purpose-built SuperMicro appliances with configuration options for all hyperconverged infrastructure (HCI) use cases. They offer a streamlined IT operations (ITOps) experience for all your workloads from day-0 through day-n.
The Nutanix Virtual Computing Platform integrates high-performance server resources with enterprise-class storage in a cost-effective 2U appliance. It eliminates the need for network-based storage architecture, such as a storage area network (SAN) or network-attached storage (NAS). The scalability and performance that the world’s largest, most efficient datacenters enjoy are now available to all enterprises and government agencies.
Benefits of NX Infrastructure
1-click IT operations from deployments in hours to non-disruptive software and firmware upgrades.
Mix and match node models and configurations as needed. Deploy only when required.
Single vendor solution with world-class 90+ Net Promoter Score (NPS) support.
Capabilities & Benefits:
Nutanix NX appliances provide a simple HCI solution for IT operations, from initial deployment through to support and maintenance with a single point of contact, and with hardware configurations designed for all application use cases.
Balanced Compute and Storage
Designed to provide a balance between compute and storage capabilities, these platforms offer flexible configurations that include GPU options.
Platforms cover a variety of use cases including ROBO and datacenter deployments such as virtual desktop infrastructure (VDI), private and hybrid cloud.

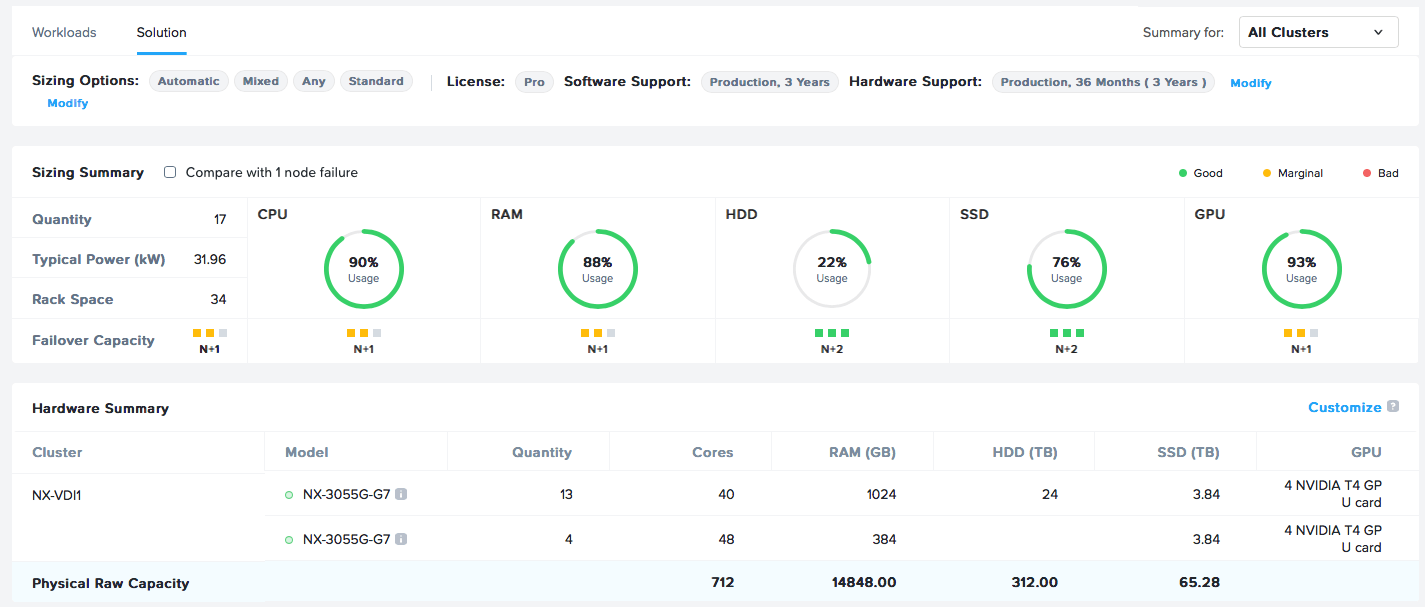

Sizer screenshot showing EUC plan.
|Deployment Model||Factory Installed Software|
|Use Case||Remote Office/Branch Office, Test and Development, Analytics and Big Data|
|Server Compute**||Single Intel Ice Lake:
|Boot||Single M.2 NVMe:  x 512GB M.2 Boot Device,|
|Storage Capacity||All SSD SED -
[2, 4] x SSD: [1.92 TB, 3.84 TB]
All SSD - [2, 4] x SSD: [1.92 TB, 3.84 TB, 7.68 TB]
SSD+HDD -  x SSD: [1.92 TB, 3.84 TB, 7.68 TB],  x HDD: [6.0 TB, 8.0 TB, 12.0 TB, 18.0 TB]
SSD+HDD SED -  x SSD: [1.92 TB, 3.84 TB],  x HDD: [6.0 TB, 8.0 TB, 12.0 TB]
|Memory||64 GB, 128 GB, 256 GB, 512 GB, 1024 GB|
|Certifications||Energy Star, CSAus, FCC, CSA, UL, cUL, ICES, CE, UKCA, KCC, RCM, VCCI-A, BSMI, EAC, SABS, S-MARK, UKRSEPRO, BIS, SII|
|Height: 1.70" (43.30 mm)
Width: 17.20" (437 mm)
Depth: 25.59" (650 mm)
Rack Units: 1U1N
|Standalone: 31.97 lbs.(14.5 kg)
Package: 50.71 lbs.(23.0 kg)
|System Cooling||5x 40 mm heavy duty fans with PWM fan speed controls|
|Op Temp Range: 50° to 95°F(10° to 35°C)
Non-Op Temp Range: -40° to 158°F(-40° to 70°C)
Op Humidity Range (non-condensing): 68° to 194°F(20° to 90°C)
Non-Op Humidity Range: 41° to 203°F(5° to 95°C)
|Power Consumption||Typical: 343W
|0.5kW Output @100-127V, 5.0-6.0A, 50-60Hz
0.6kW Output @200-240V, 3.0-4.0A, 50-60Hz
Energy Star 80+ Platinum
|Thermal Dissipation||Typical: 1166.0 BTU/hr
Maximum: 1671.0 BTU/hr
|Input Voltage: 100-240V AC auto-range, Input Frequency: 50-60Hz|
** Number of cores per CPU socket.
Nutanix NX series platforms are designed for use in all hyperconverged infrastructure, hybrid and private cloud solutions.
Node models and configurations with different storage types can be mixed in a cluster, enabling organizations to reduce infrastructure silos.
